Hey all, probably a dumb beginner question, but I’m stuck.

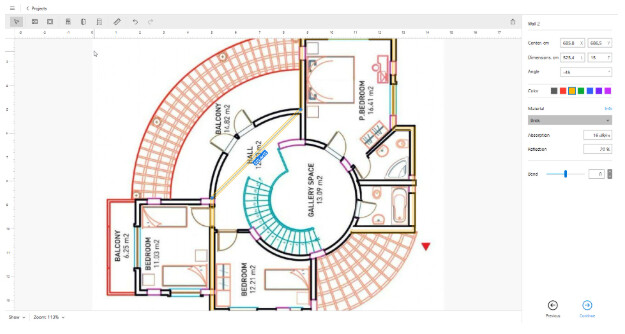

I’m doing my first predictive Wi-Fi plan in NetSpot and can’t figure out how to draw a curved wall.
I can draw straight walls fine, but what’s the right way to handle a curve? Do I need to split it into a bunch of small segments, or is there a better way?
Dude, be honest. You didn’t come here for wall-drawing help. You just wanted us to see the fancy round staircase house. Respect though. Carry on.
@ED_Sniper Haha, if only! But I seriously need help with this wall, I swear
Draw one straight wall segment between the two end points of the curved wall first. Basically connect the start and end of the arc with a normal straight wall. Then select that wall. On the right-side panel there’s a Bend control with a slider. Move that slider until the straight segment bends into the curve you need. You can fine-tune it until it matches the floor plan pretty closely.
@ED_Sniper that was exactly it, thanks! I feel so blind now. I was staring right at the wall tools and somehow missed the Bend slider on the right. It worked perfectly.
